Classic standing seam panel with improvements from it's predecessor. Designed with roofing masters, Elegant make sure that roofs are have the high tightness, stiffness, and safety in the event of suction and wind pressure, heavy rain, or hail.
Description
Elegant 2.0 system is characterized by:
- Special profiling of the panels ensuring stiffness and resistance to deformation.
- The hidden connector allows for the aesthetic shaping of the covered surface.
- Folding the lower and upper part of the zipper makes it much stiffer.
- The closing flap protects the panel lock against water penetration from the eaves and ridge.
- The bending of the metal sheet in the external lock allows for multiple assembly and disassembly of panels without the risk of damage.
- Thanks to the range of anti-corrosion coatings available, the panel can always be adapted to local environmental conditions.
- Several possibilities of joining the panels: in a horizontal and vertical arrangement, individually or joined in length - staggered or "chessboard".
- Various variants of profiles and a wide range of colors allow the panel to give the roof many views and styles.
ELEGANT 2.0 with SOUNDCONTROL or DR!STOP coating
It is possible to order panels:
DR!PSTOP anti-condensation coating, with an absorbency of up to 830 g/m2 of water, helps keep moisture and condensation that occur under roofing materials out. The use of DR!PSTOP coating and the retention of this amount of water translates directly into the durability of the roof. The DRIPSTOP coating provides resistance to bacteria, has a fire reaction class of A2-s2,d0 (EN 13501-1) and provides additional corrosion protection.
SOUNDCONTROL acoustic coating is a solution to reduce storm, rain and wind noise by about 7dB.
Click-panel roofing installed especially on roofs with lower pitches can generate noise during wind, storms and heavy rainfall. In the case of a properly insulated attic lined with heavy materials, this noise should not be particularly noticeable, although individual sensitivity to sound or the specific location of the roof in relation to the surrounding terrain may prompt many of us to seek additional protection. One solution is SOUNDCONTROL acoustic coating, which attenuates sound by up to about 7 dB*. To our knowledge, this is currently the only confirmed solution with a guarantee of soundproofing at the declared level.
*(based on research at: Fraunhofer-Institut für Bauphysik IBP Abteilung Akustik, Nobelstr. 12 | 70569 Stuttgart | Germany)
Information from Manufacturer Balex
Gallery
Attributes
Elegant 2.0 Technical Specifications
| Property | Value |
|---|---|
| Name | Elegant 2.0 standing seam panel with concealed fasteners |
| Panel effective width [mm] | 300, 510 |
| Lock profile height [mm] | 24 |
| Min. length [mm] | 400 |
| Max. length [mm] | 10,000 |
| End undercut and bend [mm] | 2 mm; 35 mm |
| Seam closing flap | Yes |
| Sheet thickness [mm] | 0.5 (0.6 and 0.7 on request) |
| Steel grade | S250GD–S280GD |
| Coating | SP Polyester 25 μm, SP Polyester Matt Pearl 35 μm, Cesar 55 |

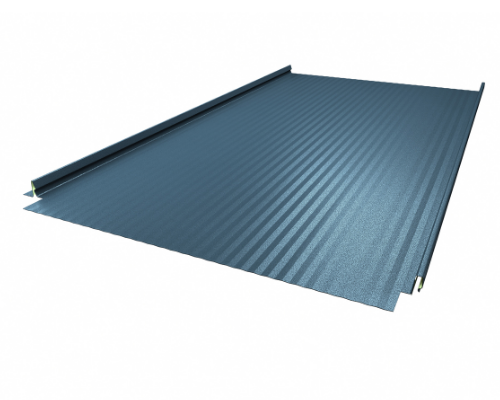

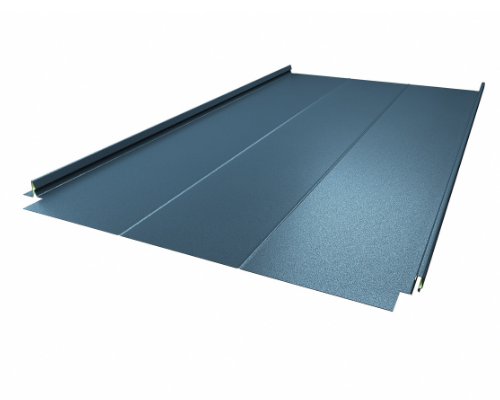

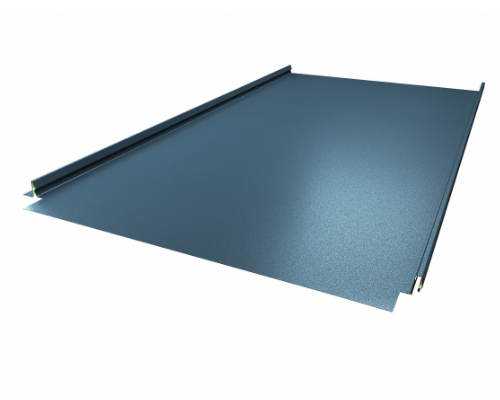

| Profiling | Plain, micro-wave, double-wide lining, double grooved |
| Weight [kg/m²] | approx. 4.5 |
| Technical requirements | CE per PN-EN 14782:2008 |
| Minimum roof slope | 8° (14%) |
| Batten spacing [mm] | 250 mm max. or use blind boarding |
