Thermano Roof

High Quality
EU Standards
Durable

Thermano is a revolution in the thermal insulation industry. A single board provides almost twice the thermal insulation level of EPS or mineral wool layers of the same thickness.

Polyurethane thermal insulation is also safe and does not absorb water, which makes it perfect for projects intended for decades of operation.

The Thermano PIR boards are true application all-rounders. They can be installed as thermal insulation for floors, cavity walls, flat roofs, green roofs, and pitched roofs. Another great advantage of Thermano insulation installed on pitched roofs is that it can be laid over the rafters to eliminate all potential thermal bridges.

Description

Features of Thermano panels:

High compressive strength (20 t/m2)
Rigidity: Maintains the thermal insulation performance for years
Low weight: The relatively low profile thickness and small density of the panel material reduce the overall roof weight, which can help reduce the load-bearing structure costs by 15 to 20%.

Information from Manufacturer Balex

Attributes

Thermano Roof Specifications

Property	Value
Name	Thermano Roof

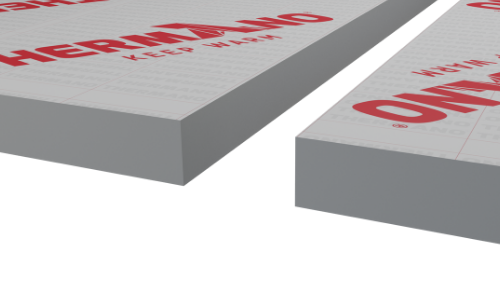

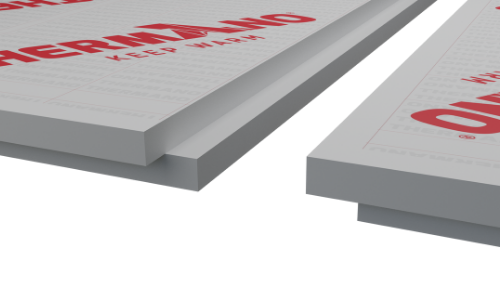

Lock types	TOP, BASIC
Cladding	Multi-layered, with aluminium cladding
Overall width [mm]	1200
Module coverage width [mm]	1185 (TOP), 1200 (BASIC)
PIR foam thickness [mm]	40, 50, 60, 80, 100, 120, 125, 140, 150, 160
Standard length [mm]	2400
Age-weighted thermal conductivity coefficient, λ [W/mK]	0.023
Bulk density [kg/m³]	30
Relative diffusion resistance, μ	50–100
Absorbability	≤2%
Compression strength	Min. 200 kPa (10% deformation)
Fire reaction class	Euroclass E (EN 13501)
Certificates	CE (EN 13165)

The chief material used in the production of Thermano panels is polyisocyanurate (PIR), secured on both sides with a gas-tight cladding, comprising several polymer layers and aluminium foil.

The high gas-tightness of Thermano panels ensures stability of the thermal insulating parameters over long periods of time, unlike other polyurethane-based materials without the cladding, i.e. spray-applied (in situ) materials.

The Thermano PIR core is formed by polymerisation of its two main components, polyols and isocyanates, with additional modifiers. The PIR core is a closed cell structure, which means that the material is an essential barrier to capillary wicking of the water and steam (water vapour) diffusion.

Thermano panels exhibit excellent mechanical performance, durability, low absorbability and other physical and chemical characteristics which mark the material out for application in even the most demanding construction environments.

Thermano Thickness vs. Thermal Insulation Ratings

λ [W/mK]	Thickness d [mm]	Insulation Coefficient U [W/m²·K]	Thermal Resistance R [m²·K/W]
0.023	40	0.57	1.70
0.023	50	0.45	2.15
0.023	60	0.38	2.60
0.023	80	0.29	3.45
0.023	100	0.23	4.35
0.023	120	0.19	5.20
0.023	125	0.18	5.40
0.023	140	0.16	6.05
0.023	150	0.15	6.50
0.023	160	0.14	6.95
